In the marine industry, a wide variety of offshore cranes are available, each with unique applications and design features. Choosing the right marine crane is not only about performance — it’s about ensuring the crane meets key engineering and safety standards. In this article, we explore what defines a qualified marine crane and how design standards influence performance, safety, and durability at sea.
⚓ What Is a Marine Crane?

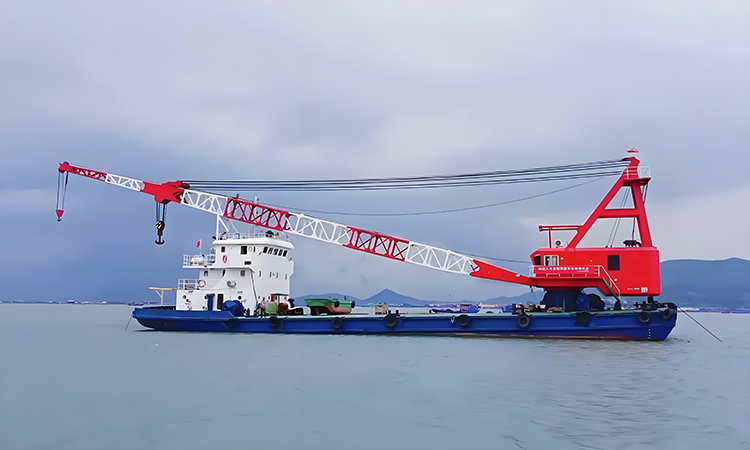

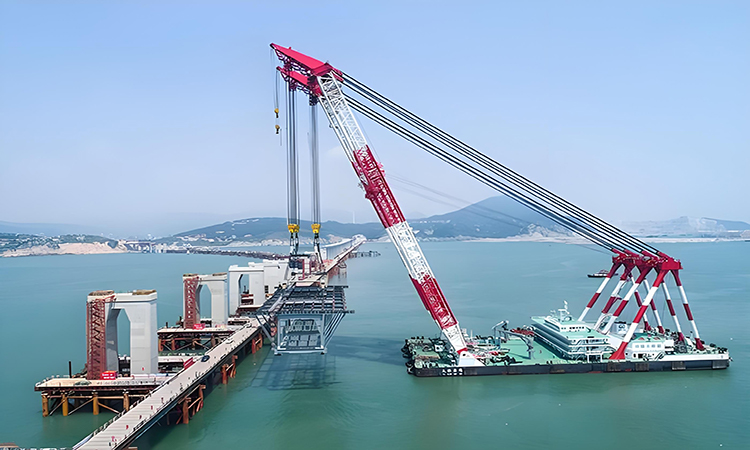

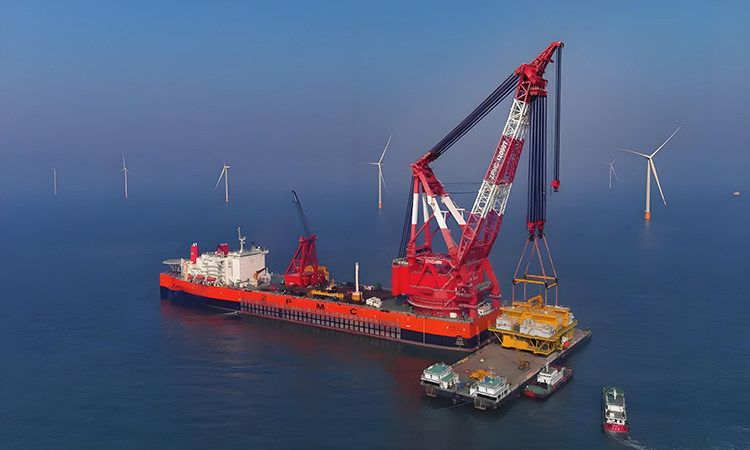

A marine crane is a specialized lifting device installed on ship decks, offshore platforms, or port facilities. These cranes are engineered for loading and unloading cargo, lifting heavy equipment, and conducting emergency operations in demanding marine environments.
Selecting a properly designed marine crane ensures higher efficiency, reduced downtime, and lower maintenance or replacement costs — all crucial for maritime operations.
🧱 Materials Used in Marine Crane Manufacturing
1. Steel
- Excellent mechanical strength to handle high loads and stress.
- Easy to weld, shape, and manufacture — ideal for large-scale production.
- Economical and widely available.
- Susceptible to corrosion but can be treated with coatings like paint or galvanization for marine use.
2. Aluminum Alloy
- Lightweight, which helps reduce crane dead weight and increase lifting efficiency.
- High strength-to-weight ratio after heat treatment.
- Forms a natural oxide film for strong corrosion resistance in seawater environments.
- Maintains excellent plasticity and machining performance.
📐 Key Design Standards for Marine Cranes
1. Performance Standards
- Lifting Capacity: Must specify rated loads at various working radii; usually capable of at least 15 meters lifting height.
- Operating Speeds:
- No-load lifting: 10–30 m/min
- Full-load lifting: 5–15 m/min
- Slewing: 0.1–0.5 r/min
- Luffing: 0.1–0.5 m/s, within 30–90 seconds
- Mechanical Structure:
- Wire rope safety factor ≥ 5–6
- Drum groove deviation ≤ 0.5 mm
- Slewing mechanism life ≥ 10,000 hours
2. Safety Standards
- Protective Devices:
- Load limiters, height limiters, anti-overturning systems, windproof brakes
- Load limiter accuracy within ±5%, emergency stop at 110% overload
- Wind brake must resist maximum regional wind force
- Electrical Safety:
- Power circuit insulation ≥ 1 MΩ
- Control circuit insulation ≥ 0.5 MΩ
- Grounding resistance ≤ 4 Ω to avoid electric shock
- System Cut-offs:
- Travel limiters for hoist/trolley
- Emergency stop switch on control platform
- Anti-slip anchoring system when crane is idle
3. Environmental Adaptability
- Temperature Range: Must operate reliably between -20°C and +50°C
- Heating systems for cold climates
- Cooling devices for high-heat environments
- Anti-Capsizing Design: Must function normally during ship tilting
- Heeling ≤ 2°
- Pitching ≤ 5°
4. Maintenance Standards
- Maintainability:
- Easy disassembly, repair, and access to key components
- Maintenance platforms or inspection channels should be integrated into design
- Standardized Components:
- Use of common, interchangeable parts to reduce repair time and cost
- Improved availability of spare parts and simplified logistics
✅ Final Thoughts
Choosing a marine crane is more than a procurement decision — it’s a long-term investment in operational safety and efficiency. At ZhuoSheng, we design and manufacture cranes that fully comply with international standards, ensuring optimal performance in harsh marine environments. From material selection to safety design, we build with precision, reliability, and your mission in mind.
