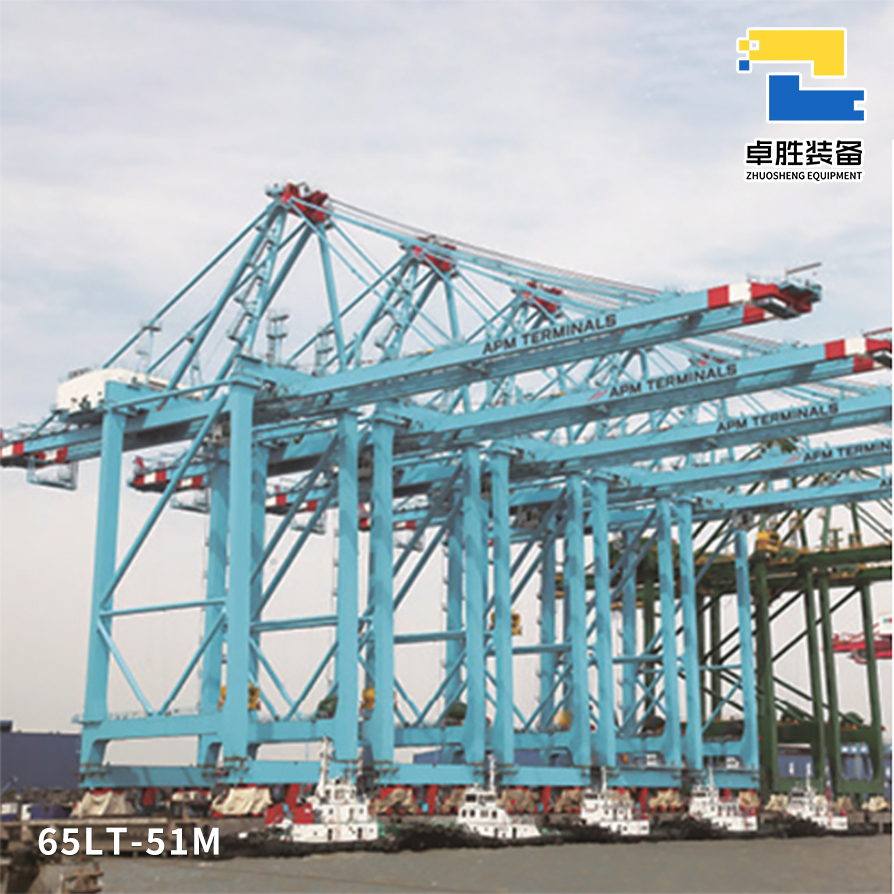

65Lt-51m Quayside Container Crane | ZHUOSHENG EQUIPMENT?
Post-Panamax Solution | 65t Spreader Capacity | 51m Outreach
Technical Specifications
? Heavy-Lift Capacity
Under spreader: 65t (rated)
Under hook: 80t (max)
Duty class: A8 (FEM 1.001)
? Coverage Breakthrough
Outreach: 51m (24-container rows)
Backreach: 15m (yard efficiency)
Lifting height: 37m??/15m??
? High-Efficiency System
Hoisting: 75m/min (dual-speed)
Trolley travel: 210m/min (Industry top)
Gantry travel: 5m/min
Slewing: 0.45rpm
? Mega-Structure
Gauge/Base: 30.5m/14.4m
Wheel system: 40 wheels??620KN max pressure
Total weight: ??1380t??Crane rail: CR100
? Power & Safety
Installed power: 2060kW (6600V 60Hz)
Wind resistance: 20m/s op.??55m/s survival
Engineering Innovations
?? Smart Control System
Full AC VFD drive + PLC control
IoT Condition Monitoring (predictive maintenance)
Auto-sway control (??0.3?? tolerance)
?? Efficient Transmission
4-drum hoisting mechanism (25% energy saving)
Dual-rail trolley system (210m/min vibration-free)
CR100 heavy-duty rails (+50% lifespan)
