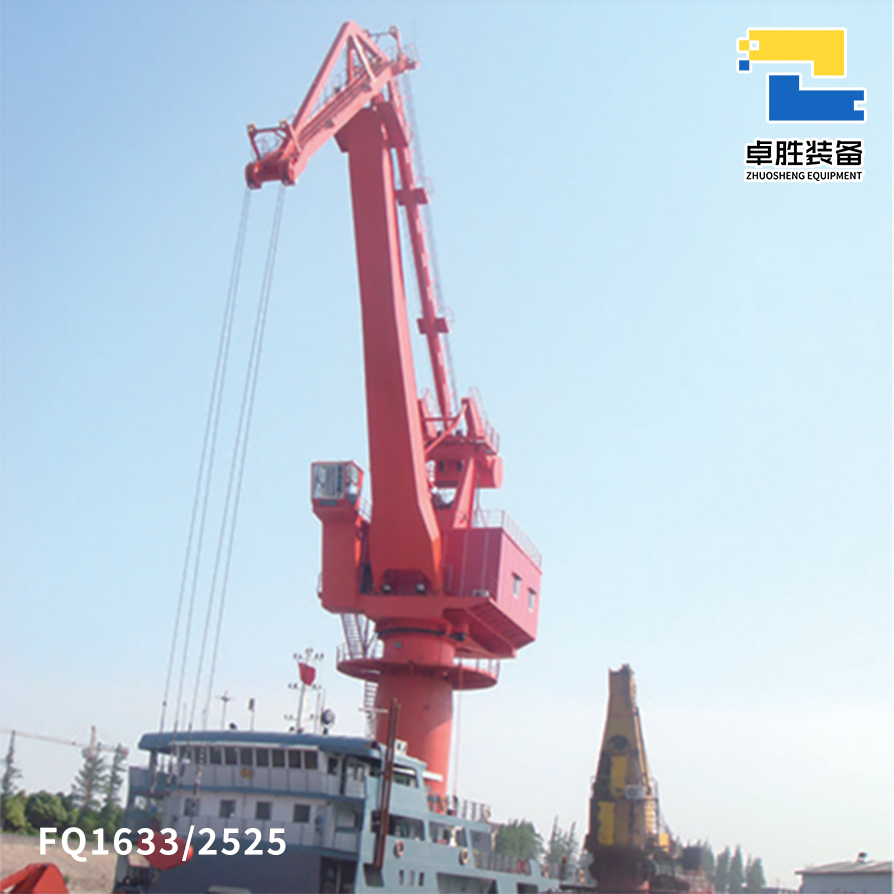

FQ1633/2525 Four-Bar Linkage Floating Crane | ZHUOSHENG EQUIPMENT?
33m Max Outreach | Dual-Mode Operation | Class A8 Heavy Duty
Technical Highlights
? Dual Lifting Modes
Grab: 16t@33m outreach | Hoisting 55m/min
Hook: 25t@25m outreach | Hoisting 30m/min
Luffing: 50m/min | Slewing: 1.5rpm
? Robust Structure
Four-bar linkage boom | Class A8 Duty (FEM 1.001)
Total weight ??280t | Tail radius ??8.54m
Power: AC380V 50Hz (global standard)
? Harsh Environment Ready
Operational winds: 20m/s | Survival winds: 55m/s
Under-deck depth: 16m (grab)/25m (hook)
Key Advantages
Engineered for mega-port operations:
? Extended Reach: 33m grab coverage (+30% efficiency)
? Smart Control: AC VFD + PLC with IoT Condition Monitoring
? Four-Bar Tech: Lever-type counterweight reduces structural stress
Manufacturer Credentials
Wuxi Jushon Crane Co., Ltd. (Est. 1974)
? National crane manufacturing license
? Permanent member of China Crane Association
? Exported to Southeast Asia & Middle East
