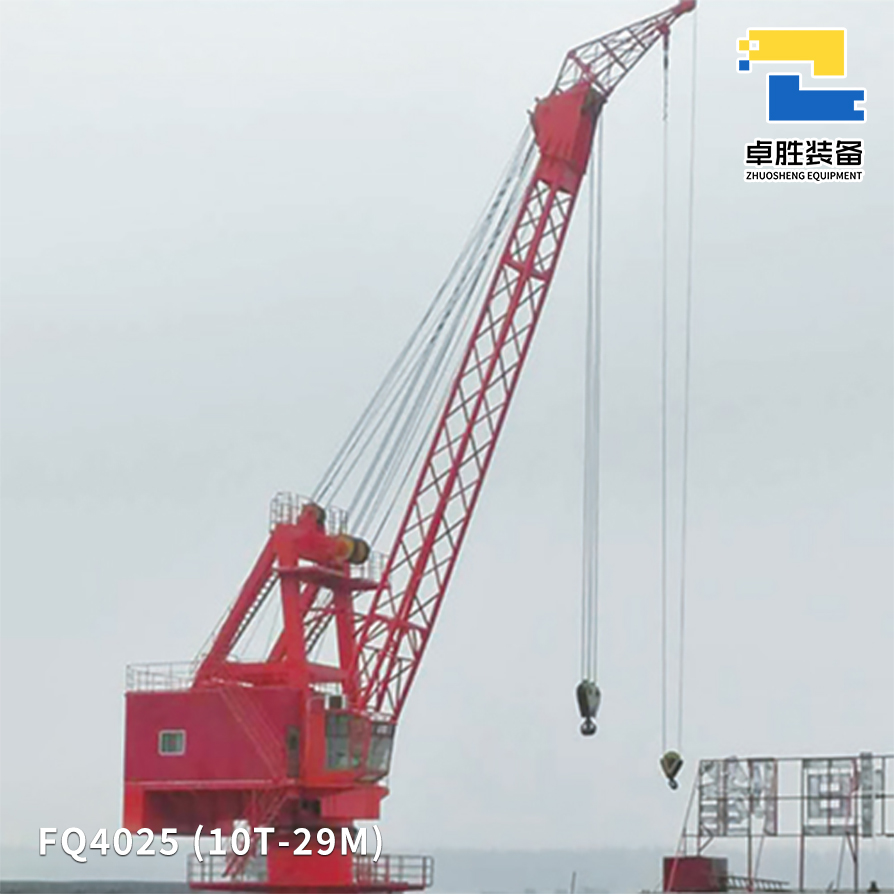

FQ4025 (10t-29m) Floating Crane | ZHUOSHENG EQUIPMENT?
Dual-Hook Operation | 29m Auxiliary Outreach | Cost-Effective Solution
Technical Highlights
? Dual-Hook System
Main Hook: 40t@25m | Hoisting 12m/min
Aux Hook: 10t@29m (Industry-leading) | Hoisting 15m/min
Luffing: 15m/min | Slewing: 1.0rpm
? Lightweight Efficiency
Rope Luffing Mechanism | Class A6 Duty
Total weight ??173t (-20% vs competitors)
Installed power: 201kW (35% energy saving)
? Compact Operation
Tail swing radius ??7m
Under-deck depth: 5m (both hooks)
Wind resistance: 20m/s operational??55m/s survival
Key Advantages
Optimized for river terminals:
? 29m Auxiliary Reach: Eliminates blind spots in old ports
? Rope Luffing: 40% lower maintenance cost (vs hydraulic)
? Smart Power Management: Auto energy-saving mode
