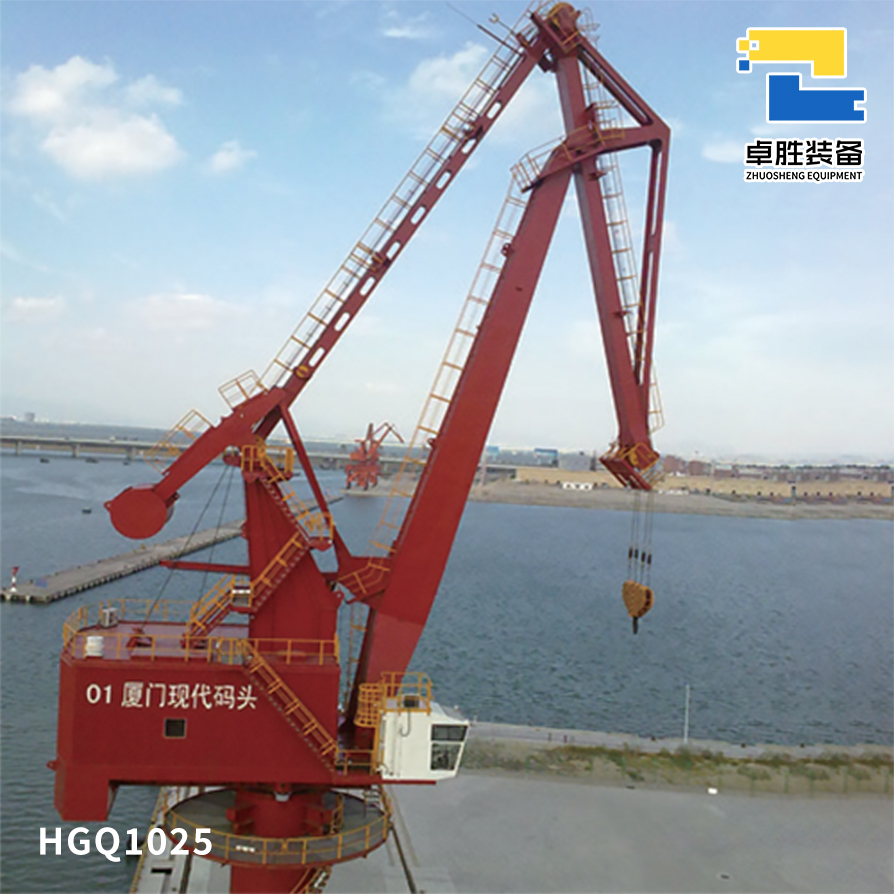

HGQ1025 Portal Slewing Crane | ZHUOSHENG EQUIPMENT?
Four-Bar Linkage System | 10t Handling | Class A8 Duty
Technical Highlights
? Core Capabilities
Capacity: 10t (grab)
Outreach: 8m~25m
Lifting Height: 20m above dock/12m below
? High-Efficiency Operation
Hoisting speed: 60m/min
Luffing speed: 52m/min
Slewing speed: 1.42rpm
? Robust Structure
Four-bar linkage boom | Class A8 Duty
Total weight ??158t | Tail radius ??6.3m
Installed power: 224kW (AC380V 50Hz)
? Environmental Adaptability
Operational wind: 20m/s
Survival wind: 55m/s
Key Advantages
Engineered for modern terminals:
? Four-Bar Innovation: Live counterweight reduces structural stress
? Smart Control: AC VFD + PLC + IoT monitoring
? Xiamen Terminal Proven: 3-year zero-failure operation record
