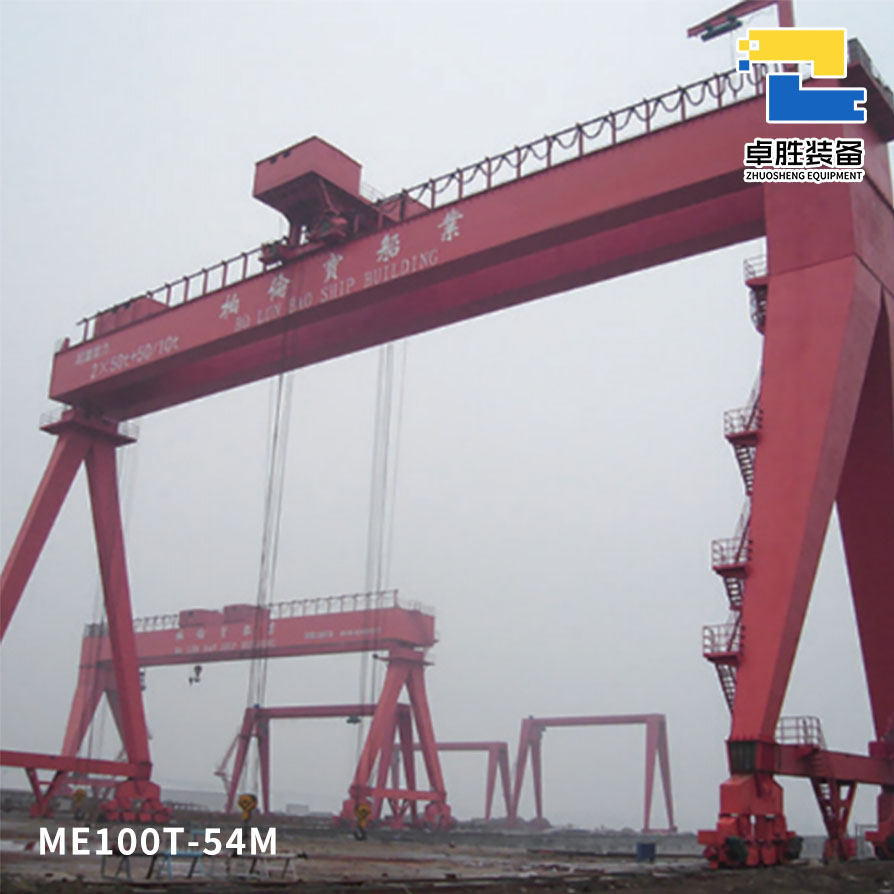

ME100T-54M General-Purpose Gantry Crane | Heavy Lifting Expert for Shipyards | 100-ton Capacity
Product Description
Heavy-Duty Lifting Solution for Modern Shipyards
Zhuosheng Equipment??s ME100T-54M General-Purpose Gantry Crane is engineered for large-scale shipyards. Spanning 54 meters over shipbuilding berths and hull section processing areas, it executes precision operations??including hull assembly, mid-air section rotation, and marine equipment installation??through longitudinal rail movement, cross-travel trolley motion, and intelligent hoisting systems. A mission-critical asset for shipbuilding efficiency.
Core Advantages & Technical Highlights
100-ton Lifting Capacity: Dual-trolley coordination (Trolley 1#: 50/10t + Trolley 2#: 50t) for versatile scenarios.
Smart Control System: AC frequency conversion speed regulation + PLC control with integrated “Status Monitoring & Control System” ensures smooth, pinpoint operation.
Superior Wind Resistance: Operational max. wind speed 20m/s; survival wind speed 55m/s for coastal environments.
High-Efficiency Performance:
Main hook lifting: 6.2 m/min
Trolley traveling: 31.6 m/min
Gantry traveling: 25.2 m/min
Robust Structure: 32 load-bearing wheels, max. wheel pressure 200KN, compatible with P50 (trolley)/QU80 (gantry) rails for long-term stability.
Key Specifications
Rated Capacity: 100 tons
Span: 54 meters
Lifting Height: 20m above rail / 5m below rail
Duty Class: A5 (Heavy Duty)
Speed Parameters:
Main hook lift: 6.2 m/min
Auxiliary hook lift: 13.2 m/min (Trolley 1# only)
Trolley traverse: 31.6 m/min
Gantry traverse: 25.2 m/min
Power System: Total installed power 243 KW (AC380V/50Hz)
Environmental Adaptability:
Max. operational wind speed: 20 m/s
Max. survival wind speed: 55 m/s
Structural Configuration:
Load-bearing wheels: 32
Max. wheel load: 200 KN
Net weight: ??360 tons
Why Choose Zhuosheng?
45+ Years Expertise: Originated from Wuxi Tower Crane Factory (est. 1974), Jiangsu??s pioneer crane manufacturer and State Science & Technology Award recipient.
Global Validation: Widely deployed in nuclear/thermal power plants and bridge projects; exported to Southeast Asia & Middle East.
Certified Reliability: Holder of “National Trusted Quality Product”, “China Top Brand”, and ISO-compliant certifications.
?? Customization Service: Derivative models available per site-specific requirements (Note: Specifications are reference values; tailored designs accepted).
