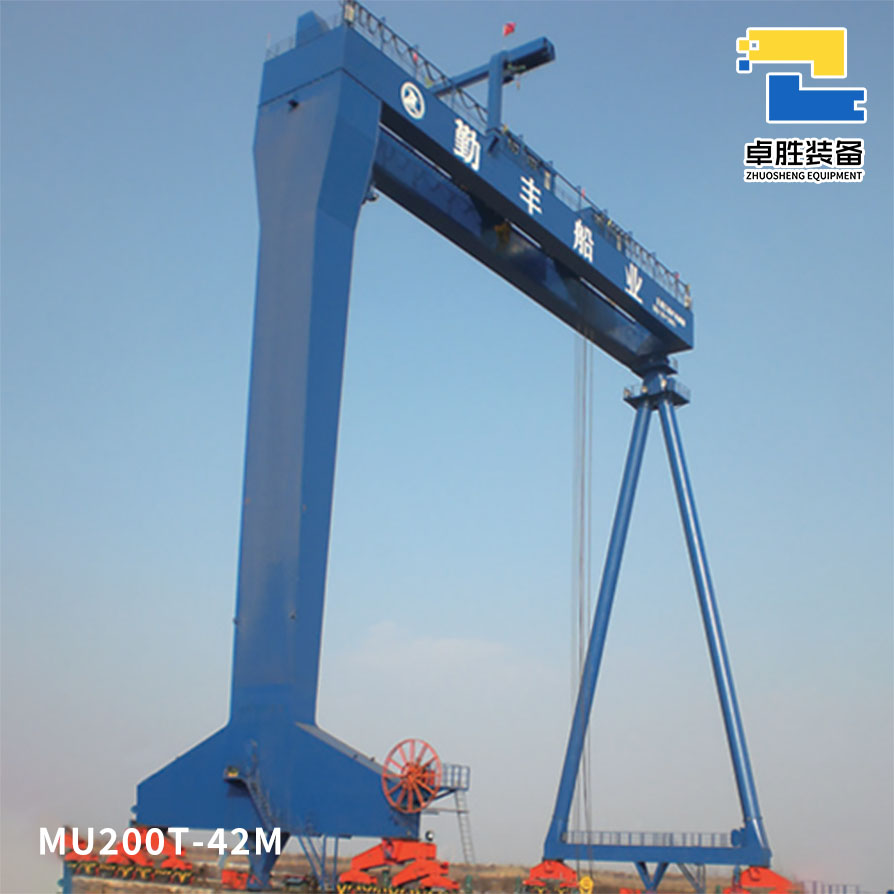

MU200T-42M Heavy-Duty Shipyard Gantry Crane
*(200-ton Lifting Capacity | 42m Span | A5 Duty Class)*
Product Description
Precision Heavy-Lifting for Hull Block Assembly
Engineered for modern shipbuilding operations, Zhuosheng’s MU200T-42M Gantry Crane delivers millimeter-accurate positioning of hull blocks and marine components. Its triple-axis mobility??longitudinal gantry travel, cross-trolley traversal, and synchronized hoisting??enables efficient in-air block rotation and equipment installation.
Engineering Excellence
Dual-Trolley System:
Trolley 1#: 50/10t (main/auxiliary hooks)
Trolley 2#: 50t (independent lifting)
Combined capacity: 200 tons
Intelligent Control: AC variable-frequency drives + PLC with real-time Condition Monitoring System (positioning accuracy ??5mm).
Typhoon-Resistant Structure:
Operational wind: 20m/s (Beaufort 8)
Survival wind: 55m/s (Beaufort 16)
Adaptive End Carriages:
Rigid end: 20 load-bearing wheels (high-precision zone)
Flexible end: 16 wheels (automatic rail tolerance compensation)
Max wheel load: 340KN (QU100 rail certified)
Technical Specifications
Lifting System
Rated capacity: 200 tons (combined)
Hoisting speeds:
Main hook: 4.6 m/min (both trolleys)
Auxiliary hook: 11.6 m/min (Trolley 1# only)
Dimensional Parameters
Span: 42m (standard shipway coverage)
Lifting height: 45m above rail / 5m below rail
Performance Metrics
Duty class: A5 (FEM 1.001 standard)
Travel speeds:
Trolley traverse: 30 m/min
Gantry travel: 30 m/min
Power system: ??400 KW (AC380V/50Hz)
Structural Integrity
Net weight: 510 tons
Total load wheels: 36 (20 rigid + 16 flexible)
Rail specifications: QU80 (trolley) / QU100 (gantry)
