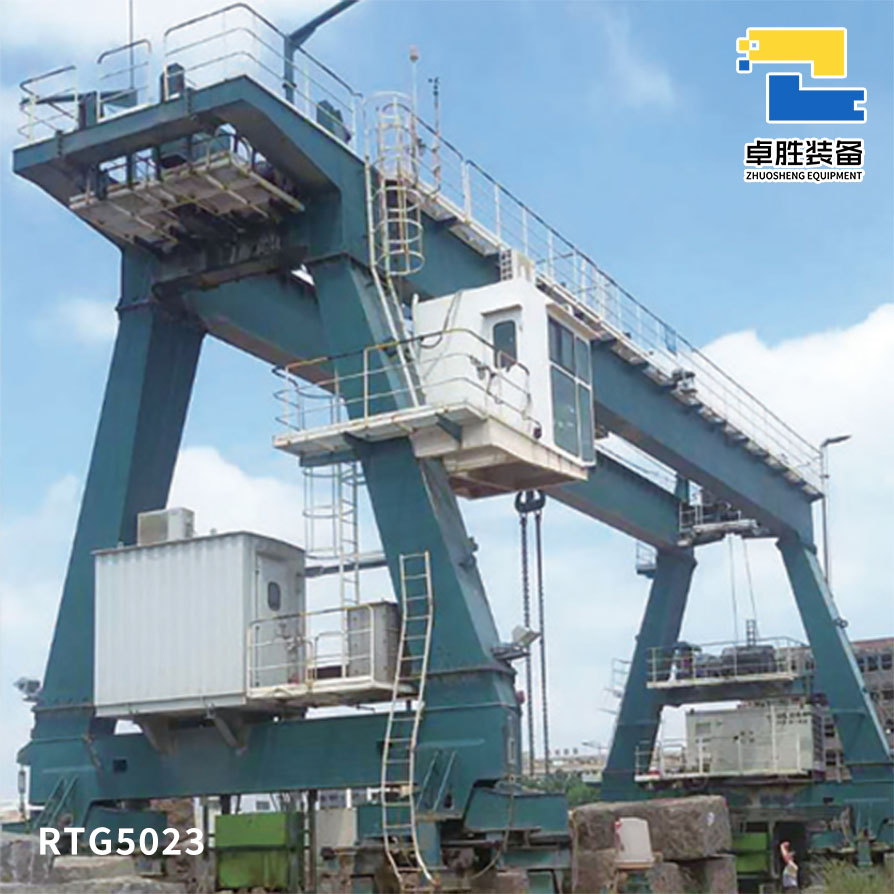

RTG5023 Rubber-Tired Gantry (RTG) Crane
*(50-ton Capacity | A6 Duty Class | Container Handling Specialist)*
Product Description
High-Efficiency Container Handling for Modern Terminals
Zhuosheng Equipment??s RTG5023 Rubber-Tired Gantry Crane delivers agile container stacking and cargo transfer in port yards and logistics centers. Powered by a diesel-electric system, its tri-directional mobility??longitudinal yard traversal, cross-trolley positioning, and spreader hoisting??ensures rapid, fuel-efficient operations in congested outdoor environments.
Core Advantages
Diesel-Electric Agility: AC generator-driven mobility without grid dependency.
Dual-Speed Precision: Independent full/empty load speeds for optimized cycle times.
Intelligent Control: AC VFD + PLC with real-time Condition Monitoring.
All-Weather Reliability: Operational in 20m/s winds; withstands 55m/s storms.
Low Ground Pressure: 16-wheel configuration with max. 12t wheel load.
Technical Specifications
Lifting System
Capacity: 50 tons (under hook)
Hoisting speeds:
Full load: 8 m/min
Empty load: 15 m/min
Mobility & Dimensions
Span: 23.47m (6-container width)
Base distance: 6.9m (stability-optimized)
Lifting height: 10m above ground (1-over-5 stacking)
Travel speeds:
Trolley traverse: 15 m/min (full) / 30 m/min (empty)
Gantry travel: 20 m/min (full) / 60 m/min (empty)
Structural Integrity
Load-bearing wheels: 16 (4-corner configuration)
Max. wheel pressure: 12 tons
Net weight: ??115 tons
Power System
Installed power: 146 KW
Voltage: 380V/50Hz
Certifications & Validation
Duty Class: A6 (ISO 4301 continuous heavy-duty)
Quality Certifications:
? National Trusted Quality Product (China)
? ISO-Compliant Manufacturing
Proven Performance: Deployed in SE Asian ports with 98% operational uptime.
?? Custom RTG Solutions:
Modifications available for:
Extended span (up to 26m)
Hybrid power options
Automated stacking systems
