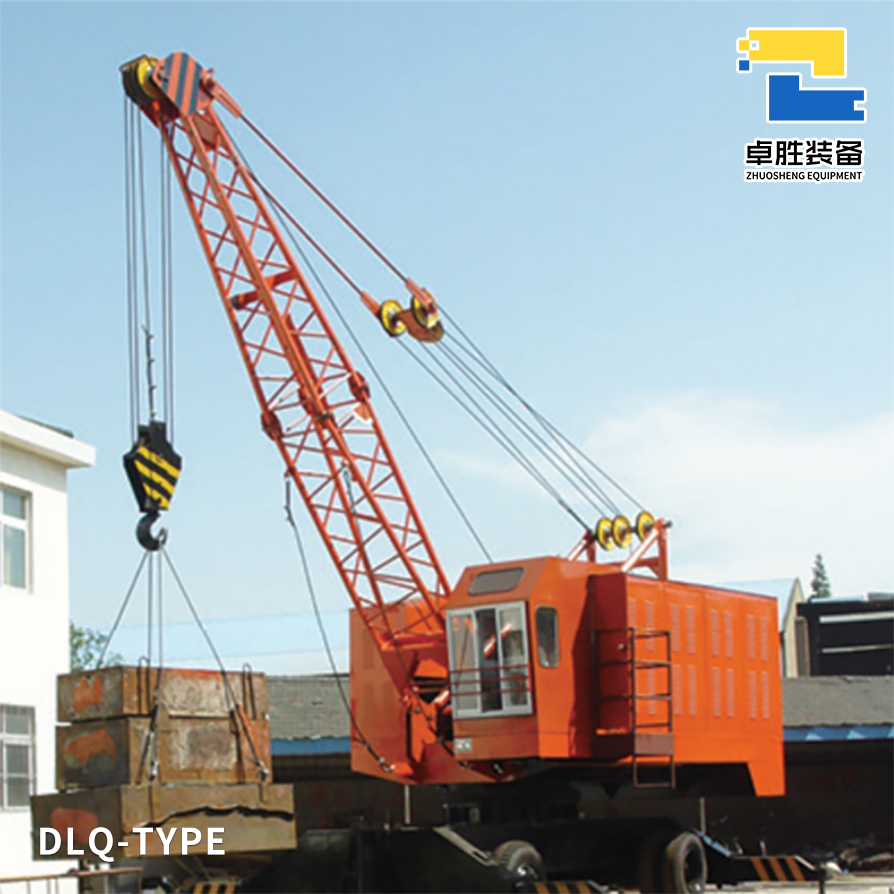

DLQ Series Electric Tire Cranes | ZHUOSHENG EQUIPMENT?
Non-Self-Propelled Lifting Solutions | 16-40t Capacity | 3-Phase AC Powered
Technical Specifications
DLQ16IC Model (Single-Drum Gravity Lowering)
Capacity: 16t
Outreach: 3.12m to 16.6m
Lifting height: 17.2m??Lowering depth: 15.12m
Speeds: Hoist 30m/min (2-part)??Luffing 45s/full range
Power: Total 70kW (Hoist 37kW + Luff 22kW + Swing 11kW)
Dimensions: 12m??4m??3.17m??Weight: 23t
DLQ25B Model (Single-Drum Mechanical Lowering)
Capacity: 25t
Outreach: 3.2m to 23.5m (Industry-leading)
Lifting height: 24m??Lowering depth: 24m
Speeds: Hoist 33.3m/min (2-part)??Luffing 75s/full range
Power: Total 63kW (Hoist 37kW + Luff 15kW + Swing 11kW)
Dimensions: 13m??4m??3.1m??Weight: 26.2t
DLQ40B Heavy-Duty Model
Capacity: 40t
Outreach: 3.4m to 23.6m
Lifting height: 24.3m??Lowering depth: 16.2m
Speeds: Hoist 14.46m/min (4-part)??Luffing 80s/full range
Power: Total 92kW (Hoist 55kW + Luff 22kW + Swing 15kW)
Dimensions: 11.5m??3.45m??4.78m??Weight: ??39.7t
Core Advantages
? Eco-Drivesystem
Full 3-phase AC power (380V/50Hz)
Zero hydraulic system (60% less maintenance)
45% energy saving vs diesel models
? Stable Structure
Outrigger pressure:
DLQ16IC: 190.5KN
DLQ25B: 287KN
DLQ40B: 344KN
Rectangular outrigger layout (6.2m??6m for 40t)
Max load moment 1520KNm (40t model)
? Portable Design
Towable by traction vehicle (min turning radius 10.5m)
Modular assembly (??4 hours on-site)
Low-noise operation (??65dB)
